Stock Transfer
Home Trip Interface Piece Picking Load Unit Picking Load Unit Verification Truck Loading Stock Transfer Inventory Audit

The Stock Transfer facility controls the flow of product from plant or vendor to warehouse and between warehouses. The specification of stock transfer requests can be imported from external systems such as order entry or procurement systems or entered interactively. The following demonstration shows the RF based facilities for picking and receiving stock transfers.

Pick Transfer

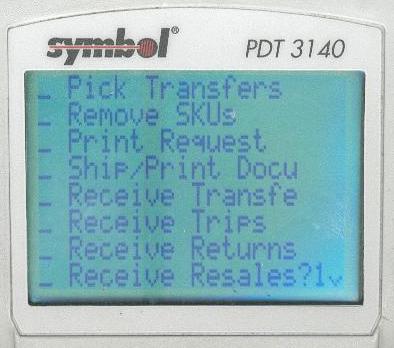

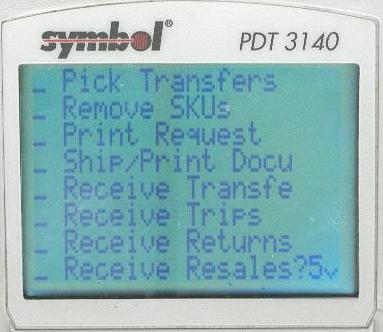

The Pick Transfers Function is selected

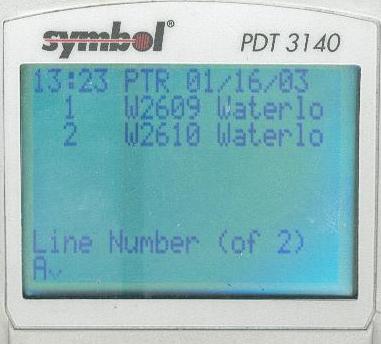

"A" is entered to Add a Stock Transfer Trip at the trip list display

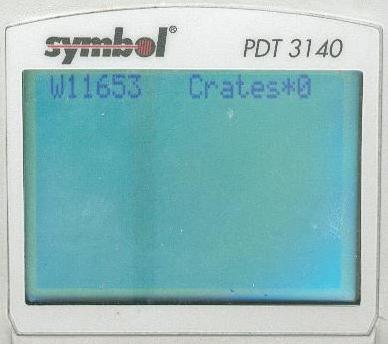

System assigns the Trip ID and the load unit type from parameters

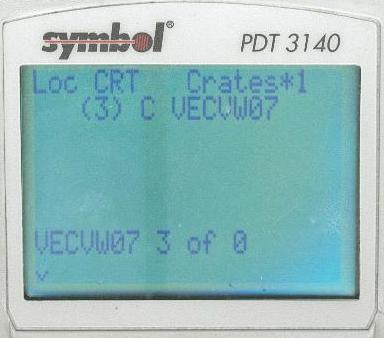

A load unit(crate) barcode ID is scanned and the number of sku's in the loading unit is added to the trip

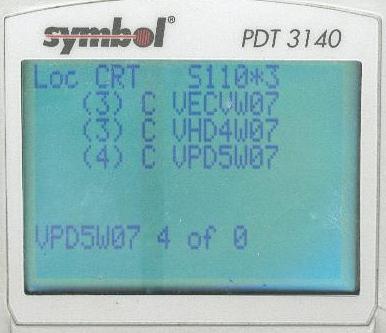

(3) indicates the number of a given sku loaded on the trip

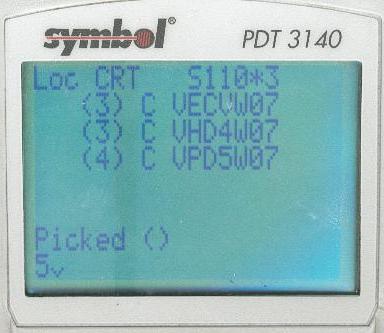

Entering the ID initiates loading from a different type of loading unit


This type of loading unit requires specification of the number of sku's to be loaded

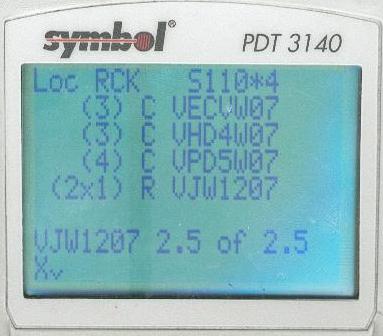

"X" is entered upon completion of loading the truck

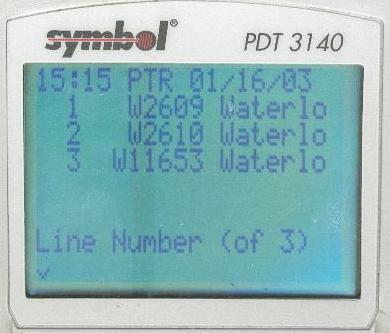

The Trip(W11653) has been added to the list of active trips and is now available to be used for control of the receiving function


The truck is now loaded and ready to go to the receiving point.

The same control procedure is utilized to control trips within or between warehouses that may not require the use of a truck


  Receive Transfer

The Receive Transfers Function is selected

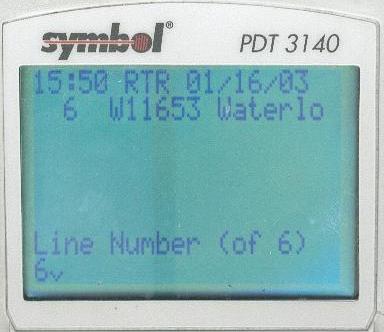

The trip created above is selected to be received

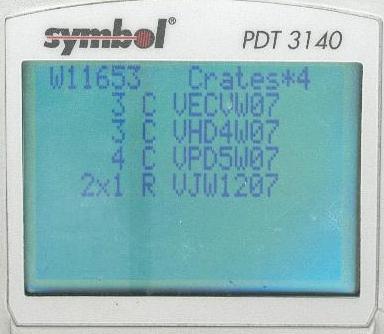

As each item is removed from the truck it is scanned and the corresponding total received is shown in brackets




Upon completion of receiving an "X" is entered to exit the receiving list

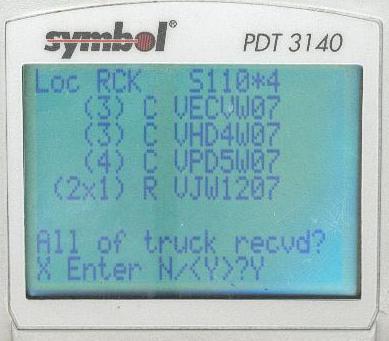

A confirmation prompt is presented for the completion of the receiving process

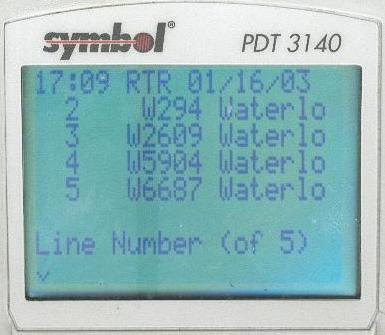

The Trip record (W11653) has now been removed from the list of active Stock Transfer Trips
